Looking for the ideal hot water solution to save money and to reduce power consumption in your commercial building or unit block?

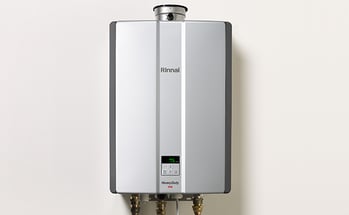

The Rinnai Gas Hot Water HD210i System is the unit for you.
Recently released at the H&G Plumbing Trade Show, the Rinnai team explains that this super efficient gas hot water system is ideal for internal commercial situations.
Rinnai Hot Water is the pioneer in Australia to introduce this ground breaking technology into the Australian commercial gas hot water industry. The great benefit that this unit offers is the continuous flow water. No more running out of hot water.

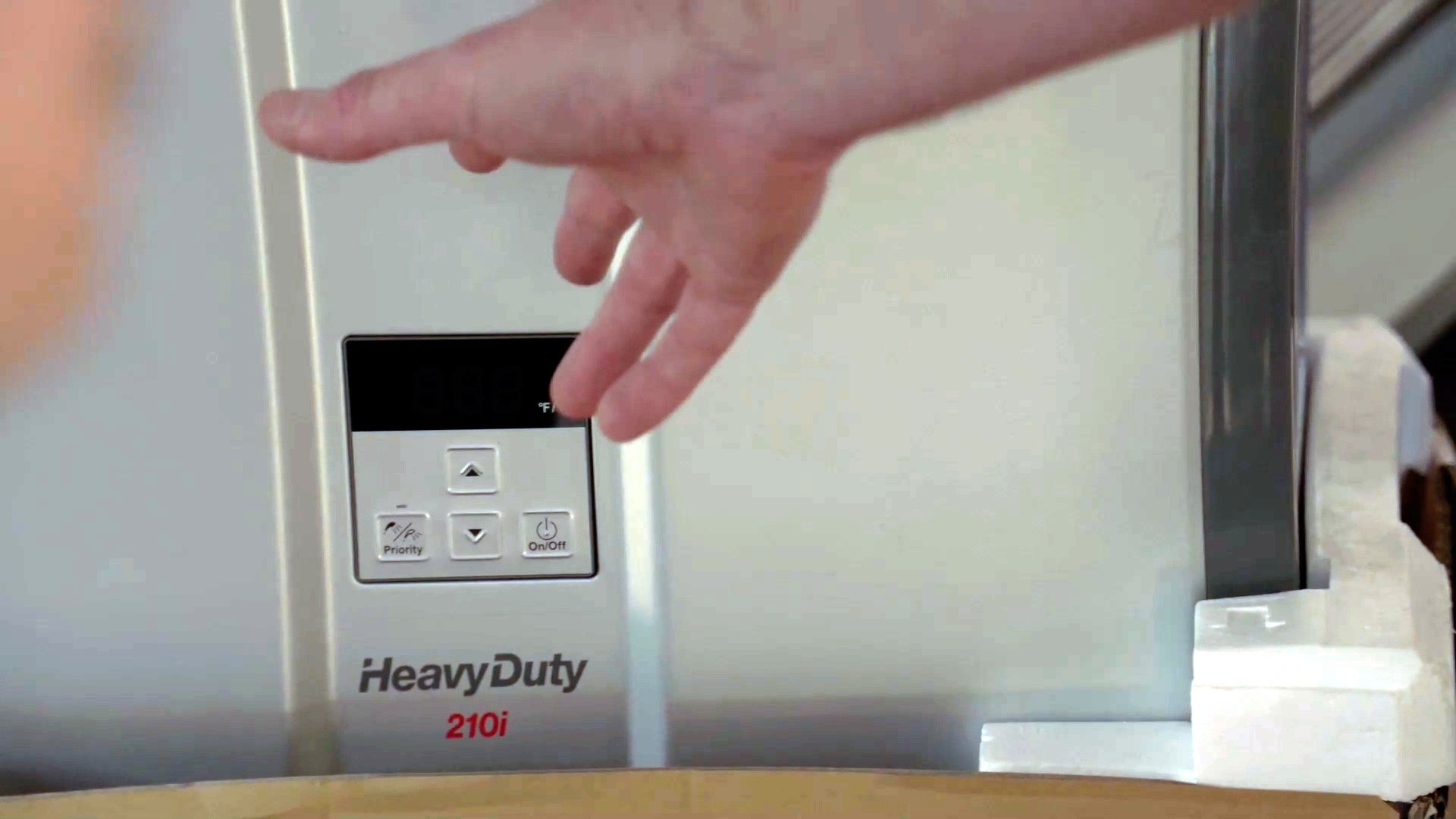

Luke Walker from Rinnai talks about the features and benefits of the HD210i unit. Watch it now.
Suitable applications include:
- Caravan Parks
- Butchers
- Laundromats with domestic style top loader machines
- Childcare centres
- Small amenity blocks
- Factories
- High temperature washdown
 |
 |
Downloads
Specifications Rinnai HD210i Hot Water System
|
Dimensions (mm) : Height |
670 |
|
Dimensions (mm) : Width |
470 |
|
Dimensions (mm) : Depth |
291 |
|
Colours |
Silver |
|
Factory Default Temperature (Celsius) |
50 or 75 |
|
Water Pressure (kPa) : Minimum |
300 |
|
Water Pressure (kPa) : Maximum |
1000 |
|
Gas Rate Min/Max : NG |
15.9/209 |
|
Gas Rate Min/Max : LPG |
15.9/209 |
|
Min operating water flow rate : L/min |
2.4 |
|
Thermal efficiency rating (%) |
97 |
|
Connection Sizes Gas/Hot/Cold/Condensate (mm) |
20/20/20/15 |
|
Inbuilt controller |
Yes |
|
Dimensions (mm) : Height Inc Brackets |
722 |
|
Dimensions (mm) : Hot Water Outlet (From Wall) |
157 |
|
Dimensions (mm) : Hot Water Outlet (Left from Centre) |
130 |
|
Dimensions (mm) : Cold Water Inlet (From Wall) |
91 |
|
Dimensions (mm) : Cold Water Inlet (Right from Centre) |
10 |
|
Dimensions (mm) : Gas Connection (From Wall) |
72 |
|
Dimensions (mm) : Gas Connection (Right from Centre) |
142 |
|
Dimensions (mm) : Gas Connection Length (From Base) |
45 |
|
Dimensions (mm) : Cold Connection Length (From Base) |
54 |
|
Dimensions (mm) : Hot Connection Length (From Base) |
41 |
|
Dimensions (mm) : Condensate Length (From Base) |
24 |
|
Weight (Kg) |
29 |
